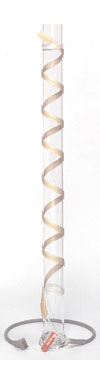

Tape heats odd lengths of glass or metal pipe. Ribbon-type heating elements running lengthwise in the tape are encased in durable glass braid and are impregnated and covered with tough silicone rubber. The silicone rubber insulates stranded terminal leads at one end and waterproofs the fittings at both ends. It also permits use in high-moisture areas and helps to make the tapes resistant to most laboratory environment conditions. All tapes are supplied with a 2 blade plug and have a temperature limit of 480°F. NOTE: Power ratings listed are for tapes not covered by insulation when installed. If covered, temperature should be monitored and controlled to avoid exceeding the 480°F limit. Short narrow tapes that are rated at less than 115 volt must be operated with a variable voltage transformer.

Due to the voltage of the heating tape, a variable voltage transformer is required. Please see CG-15005, CG-15006 or CG-15010.

Item Number	Item Description	PQ
CG-14050-01	Glas-Colr Heating Tape, 1/4in Wide x 4ft Long, 60 Watts, 45 Volts, 9.08 Ohms/ft	EACH
CG-14050-02	Glas-Colr Heating Tape, 1/4in Wide x 6ft Long, 90 Watts, 70 Volts, 9.08 Ohms/ft	EACH
CG-14050-03	Glas-Colr Heating Tape, 1/4in Wide x 8ft Long, 120 Watts, 95 Volts, 9.08 Ohms/ft	EACH
CG-14050-04	Glas-Colr Heating Tape, 1/4in Wide x 10ft Long, 150 Watts, 120 Volts, 9.08 Ohms/ft	EACH
CG-14050-05	Glas-Colr Heating Tape, 1/2in Wide x 4ft Long, 140 Watts, 45 Volts, 3.77 Ohms/ft	EACH
CG-14050-06	Glas-Colr Heating Tape, 1/2in Wide x 6ft Long, 210 Watts, 70 Volts, 3.77 Ohms/ft	EACH
CG-14050-07	Glas-Colr Heating Tape, 1/2in Wide x 8ft Long, 280 Watts, 95 Volts, 3.77 Ohms/ft	EACH
CG-14050-08	Glas-Colr Heating Tape, 1/2in Wide x 10ft Long, 340 Watts, 115 Volts, 3.77 Ohms/ft	EACH
CG-14050-10	Glas-Colr Heating Tape, 5/8in Wide x 5ft Long, 145 Watts, 115 Volts, 18.15 Ohms/ft	EACH
CG-14050-11	Glas-Colr Heating Tape, 5/8in Wide x 6ft Long, 120 Watts, 115 Volts, 18.15 Ohms/ft	EACH
CG-14050-12	Glas-Colr Heating Tape, 5/8in Wide x 7ft Long, 105 Watts, 115 Volts, 18.15 Ohms/ft	EACH
CG-14050-13	Glas-Colr Heating Tape, 5/8in Wide x 8ft Long, 90 Watts, 115 Volts, 18.15 Ohms/ft	EACH
CG-14050-14	Glas-Colr Heating Tape, 5/8in Wide x 9ft Long, 80 Watts, 115 Volts, 18.15 Ohms/ft	EACH
CG-14050-16	Glas-Colr Heating Tape, 1in Wide x 3ft Long, 150 Watts, 115 Volts, 27.25 Ohms/ft	EACH
CG-14050-17	Glas-Colr Heating Tape, 1in Wide x 4ft Long, 120 Watts, 115 Volts, 27.25 Ohms/ft	EACH
CG-14050-18	Glas-Colr Heating Tape, 1in Wide x 5ft Long, 100 Watts, 115 Volts, 27.25 Ohms/ft	EACH
CG-14050-19	Glas-Colr Heating Tape, 1in Wide x 10ft Long, 700 Watts, 115 Volts, 1.88 Ohms/ft	EACH
