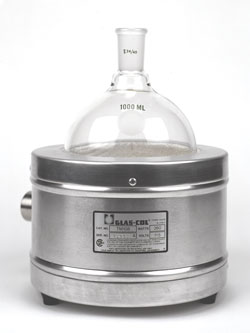

The Glas-Col® Series STM mantle performs the same function as a Series TM heating mantle, plus operations requiring more heat. This mantle is useful in distillation and fractionation processes, especially when time is important. The higher temperature range enables operations to be performed that require more heat, such as rapid distillation of water and liquid-phase cracking in a flask, where the products are taken out of the flask through a column. Withstanding an upper internal operating temperature of 650° C, the STM mantle is very resistant to burnout. The STM mantle has a durable aluminum exterior and a resilient and pliable interior to cradle glassware. A splash guard and poncho safety shield can be used to prevent damage from accidental spills. The CG-12500-11 and CG12500-12 have 3in legs for cool lab benches, are sealed and have inert gas purge fittings. CAUTION: The STM series mantle is recommended for use with flammable solvents only when used with a poncho safety shield.

Item Number	Item Description	PQ
CG-12500-01	100mL Glas-Col® Heating Mantle, Series inSTMin, Spherical, 230 Watts	EACH
CG-12500-04	250mL Glas-Col® Heating Mantle, Series inSTMin, Spherical, 470 Watts	EACH
CG-12500-06	500mL Glas-Col® Heating Mantle, Series inSTMin, Spherical, 470 Watts	EACH
CG-12500-07	1000mL Glas-Col® Heating Mantle, Series inSTMin, Spherical, 600 Watts	EACH
CG-12500-08	2000mL Glas-Col® Heating Mantle, Series inSTMin, Spherical, 870 Watts	EACH
CG-12500-09	3000mL Glas-Col® Heating Mantle, Series inSTMin, Spherical, 970 Watts	EACH
