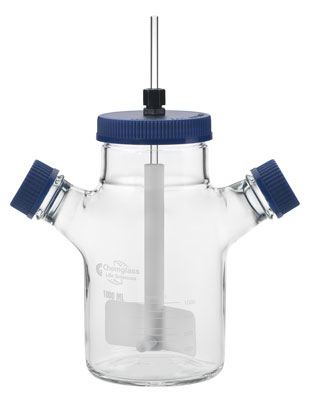

Flat bottom spinner flasks promote optimal growth of suspension cultures. The complete system includes a flask with two angled sidearms and a PTFE paddle with glass shaft that adjusts through the compression fitting in the cap. Replacement Components: · The impeller assembly consists of the lower magnetic stir bar, impeller blade and blade holder · The replacement shaft is the glass portion only · The cap assembly consists of the corresponding screw cap, liner and compression fitting

Items

PQ = Package Quantity, DPrice = Discounted Price

Item Number	Item Description	PQ
CLS-1430-F100	BioProcess Spinner Flask, 100mL, Flat Bottom, Complete	EACH
CLS-1430-F250	BioProcess Spinner Flask, 250mL, Flat Bottom, Complete	EACH
CLS-1430-F500	BioProcess Spinner Flask, 500mL, Flat Bottom, Complete	EACH
CLS-1430-F1L	BioProcess Spinner Flask, 1,000mL, Flat Bottom, Complete	EACH
CLS-1430-F3L	BioProcess Spinner Flask, 3,000mL, Flat Bottom, Complete	EACH

Subject to spinner flask discount.

Replacement Parts

PQ = Package Quantity, DPrice = Discounted Price

Item Number	Item Description	PQ
CLS-1705-106	#106 Orange Silicone O-Ring
CLS-1431-03	Impeller Assembly Only, for 100mL-250mL BioProcess Spinner Flasks
CLS-1431-05	Impeller Assembly Only, for 500mL BioProcess Spinner Flasks
CLS-1431-06	Impeller Assembly Only, for 1L & 3L BioProcess Spinner Flasks
CLS-1425-21	Glass Shaft Only, 7mm, 100mL & 250mL Spinner Flasks
CLS-1425-22	Glass Shaft Only, 7mm, 500mL Spinner Flasks
CLS-1425-23	Glass Shaft Only, 7mm, 1,000mL Spinner Flasks
CLS-1425-24	Glass Shaft Only, 7mm, 3,000mL Spinner Flasks
CLS-1432-42	Cap Assembly Only, for 100mL, 250mL & 500mL BioProcess Spinner Flasks
CLS-1432-43	Cap Assembly Only, for 1,000mL & 3,000mL BioProcess Spinner Flasks
CLS-1425-91	Stir Bar Magnet Only, 50mL-500mL Spinner Vessels
CLS-1425-92	Stir Bar Magnet Only, 1L-3L Spinner Vessels
CLS-1430-001	7mm Compression Fitting, Black
CLS-1430-002	7mm Silicone Plug Stoppers
CLS-1425-82	Spinner Cap Gasket, White FDA Grade Silicone, 70mm Cap
CLS-1425-83	Spinner Cap Gasket, 7mm, White FDA Grade Silicone, 100mm Cap
