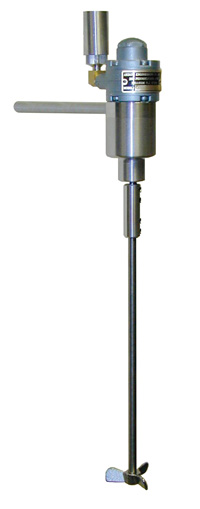

Air driven stirrer for use whenever the use of an electrical stirrer might be hazardous or impractical. Ideal for mixing all types of solvents, lacquers and volatile chemicals without the possibility of spark ignition. Motor accepts air input line pressure from 35 to 1000 PSI and delivers up to 1/3 Hp @ 80 PSI. A needle valve controls the mixing speed while a muffler ensures quiet operation. Supplied complete with a 9/16" Diameter x 10" long aluminum support rod, 4ft lenth of air hose with double fittings for connection to air supply, and a 3/8diameter x 12long stirrer shaft having a 2-1/2" diameter S.S. propeller.

CONSTANT TORQUE VALUES GIVEN AT A PRESSURE OF 80 PSI.

PLEASE NOTE: FOR LONG AND TROUBLE-FREE LIFE OF YOUR AIR POWERED STIRRER, IT IS RECOMMENDED THAT THE AIR SUPPLY BE FILTERED TO REMOVE OIL AND WATER AEROSOLS AS WELL AS FOREIGN PARTICLES LARGER THAN 40 MICRONS. IN ADDITION, AN AUTOMATIC AIR LINE LUBRICATOR MUST BE INSTALLED IN THE AIR LINE JUST AHEAD OF THE MOTOR. FOR THESE ITEMS SEE LISTING BELOW.

*** For Product Operating Manual Click Tech Notes Tab ***

Item Number	Item Description	PQ
CG-2025-01	Stirrer, Arrow, Air Driven, High Speed, 200-10,000 RPM, 3.6 in-lbs Constant Torque, Direct Gear Ratio	EACH
CG-2025-02	Stirrer, Arrow, Air Driven, General Purpose, 50-1200 RPM, 18.0 in-lbs Constant Torque, 7:1 Gear Ratio	EACH
CG-2025-03	Stirrer, Arrow, Air Driven, High Torque, 8-170 RPM, 100.0 in-lbs Constant Torque, 49:1 Gear Ratio	EACH
